Using the Scheduler to Control Heating

Schedules can be setup for every LightwaveRF heating product you have to allow you to have room by room control. Control each device any time at home or away to warm up your home, or keep it cool when you're not there.

LightwaveRF strongly recommends using Energizer Ultimate Lithium batteries for maximum battery life and device performance.

To add a heating device:

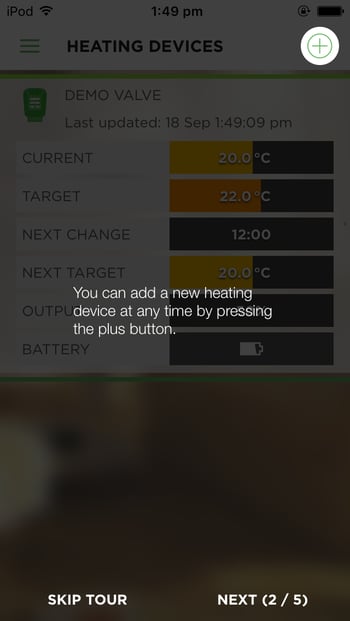

Tap the Heating tab on the Side Control Panel, Tap the + icon at the top right.

The app will check to see if there is a Lightwave Link on the local network. You need to be connected to the same Wi-Fi network as the Lightwave Link is physically connected to.

Before you press the OK button, place your heating product into linking mode. Once your product indicates it is in linking mode, press OK

If the app does not receive linking data from the Lightwave Link, then it will show an error. This will occur if the product is out of range, or the Link loses network access during linking.

If you are adding a thermostat, it will ask if you will be controlling central heating with this device. This is for a future addition to the app; choose yes or no.

Once linked, the app will detect the product you have added and ask you to give it a name, When you are happy with the name, press the OK button.

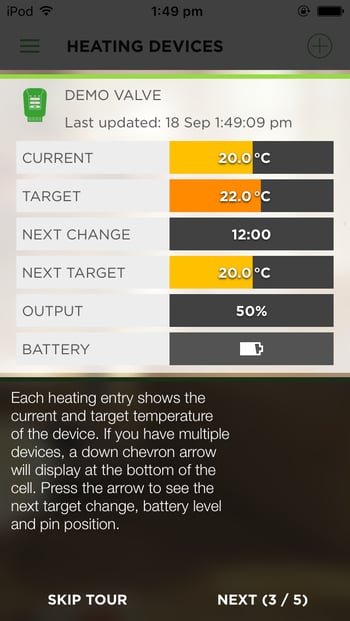

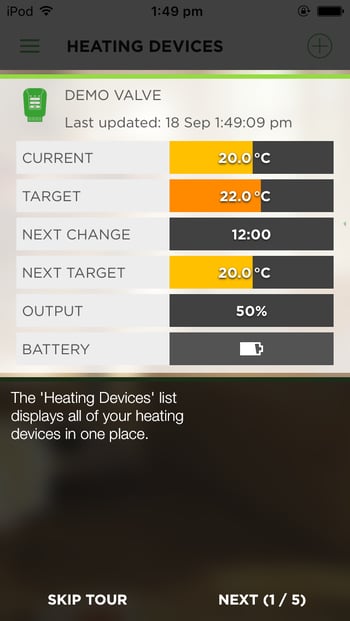

Your new device will now show in your heating page.
