How to Configure a "Call for Heat" Automation for Your Heating Devices?

This article provides a comprehensive, step-by-step guide on setting up a "Call for Heat" automation within the Lightwave app, ensuring a seamless process for users looking to optimize heating efficiency and streamline temperature management.

A call-for-heat automation is used during the initial setup of your heating system to ensure that your Thermostat/TRV's and Boiler switch communicate with one another; this allows the Thermostat /TRV's to operate the boiler switch whenever they require or don't require heat.

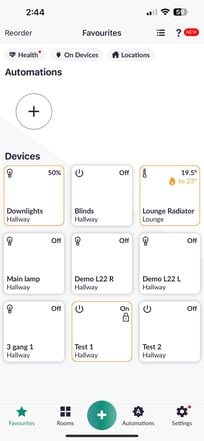

  1. Launch the Lightwave Link Plus app.
    You will initially see your favorites page.

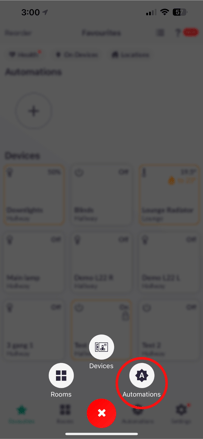

  2. Access the Automation Menu.
    Tap the green plus (+) icon located at the center bottom of the app, then select "Automations."

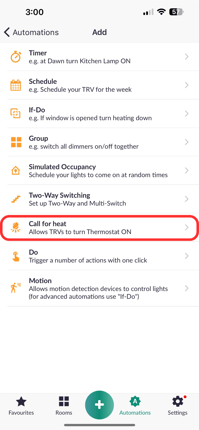

  3. Select "Call for Heat".
    Choose the "Call for Heat" option from the list of available automation.

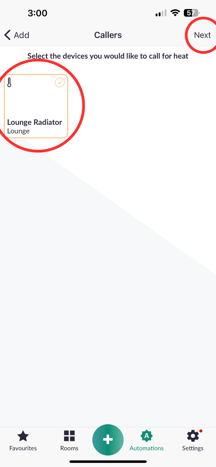

  4. Configure Callers.
    When prompted, select the Caller devices (e.g., TRVs or thermostats) that will call for heat. Tap "Next" in the top right corner once you've made your selection.

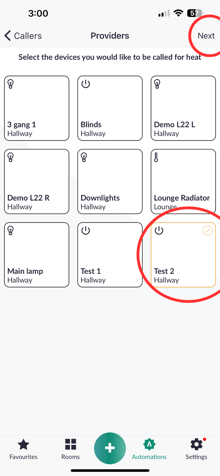

  5. Configure Providers.
    Next, select the Provider devices (e.g., Boiler Switch or Relay) that will provde the heat t the caller(s). After selecting, tap "Next" in the top right corner.

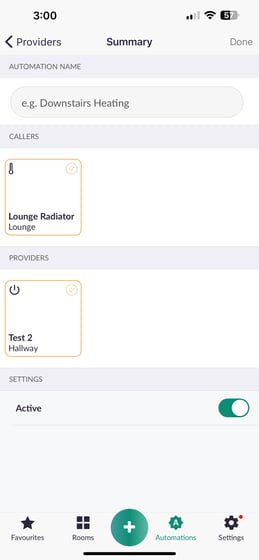

  6. Finalize the Automation.
    Enter a name for your automation and then tap "Done" in the top right to complete the setup.

If you continue to experience issues, feel free to call us at

0121 250 3625

(option 2). Our support team is available Monday to Friday, from 9 am to 5 pm.
